From Plastic Bags and Paper Boxes to Glass Jars:An Industrial“Alchemy Lab”of Packaging
Packaging for smoking accessories is far more than an outer shell.It directly affects product freshness,moisture resistance,child safety compliance,transportation durability,anti-counterfeit capability,and premium brand perception.Different packaging materials rely on entirely different manufacturing worlds.Some processes resemble high-speed currency printing presses,while others feel like molten crystal sculpting or microscopic architectural folding.
Below is a complete breakdown of the major production processes used in smoking accessories packaging,including process flow,equipment,quality impact,cost differences,and comparisons between traditional and advanced manufacturing technologies.

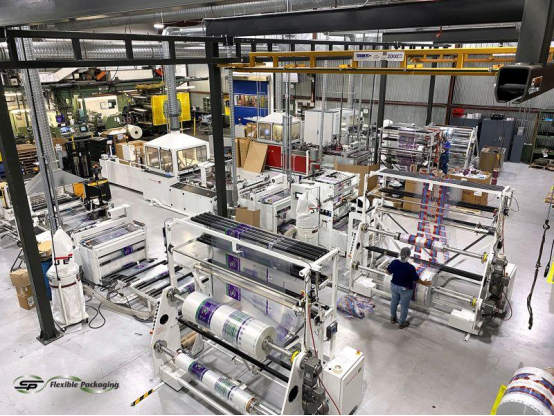

Mylar bags are among the most widely used packaging formats in the North American and European smoking accessories markets.
Common applications include:
Vape cartridge packaging
Disposable vape bags
Edibles and candy-style packaging
Odor-proof packaging
Child-resistant packaging
Raw Material Mixing
↓
Film Blowing/Casting
↓

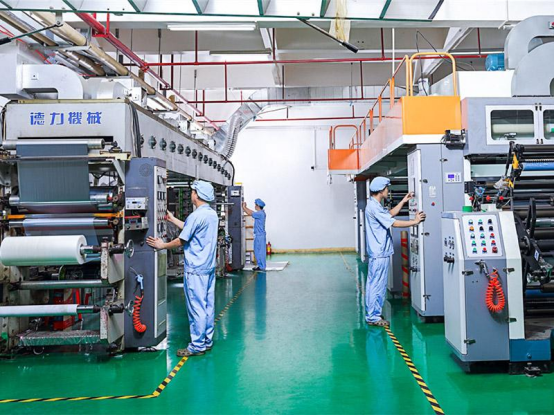

Lamination
↓
Printing(Gravure/Digital)
↓
Drying&Curing
↓

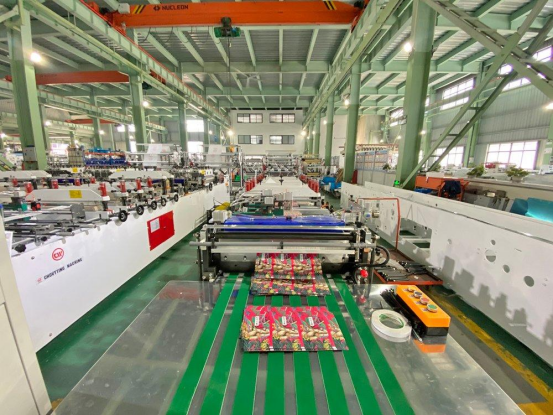

Bag Forming
↓
Zipper&Child-Resistant Structure Installation
↓
Quality Inspection&Packaging

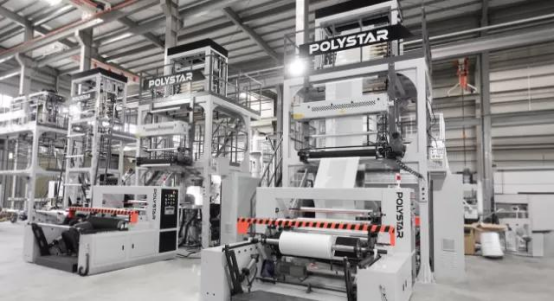

Blown film extrusion is the core process behind flexible plastic packaging.
Plastic pellets such as PE,PET,and BOPP are melted and extruded through a circular die,inflated into a bubble,cooled,and wound into film rolls.
Item | Traditional Single-Layer Blowing | Advanced Multi-Layer Co-Extrusion |
Oxygen Barrier | Standard | Excellent |
Moisture Resistance | Medium | High |
Film Strength | Easier to Tear | Highly Durable |
Material Cost | Lower | Higher |
Suitable Products | Standard Packaging | Premium Packaging |
Production Speed | 40-60 m/min | 80-150 m/min |
Defect Rate | 6%-10% | 1%-3% |

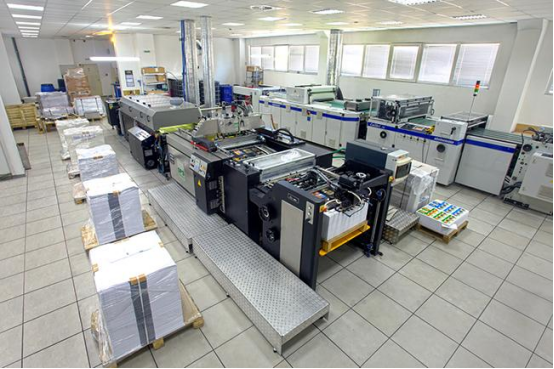

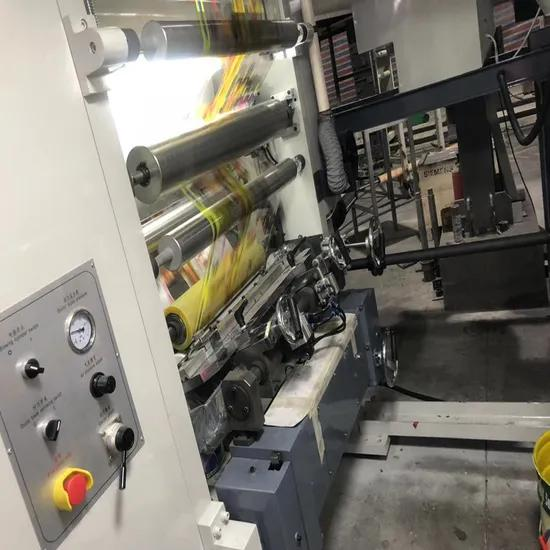

High-end smoking accessories packaging heavily relies on gravure printing.
Rich and vibrant colors
Excellent metallic effects
Ideal for mass production
High print precision
Expensive cylinder engraving costs
Not economical for small batches
Digital printing has become increasingly popular among boutique and startup brands.
Comparison | Gravure Printing | Digital Printing |
Minimum Order Quantity | High | Very Low |
Plate Cost | Expensive | None |
Sampling Speed | 3-7 Days | Same Day |
Unit Cost | Lower for Large Volumes | Better for Small Runs |
Variable QR Codes | Difficult | Easy |
Best For | Large Brands | Emerging Brands |
Paper boxes are widely used for:
Vape battery boxes
Cartridge retail packaging
Gift boxes
Premium cannabis packaging
Paper packaging functions like a tailored luxury suit for a product,shaping the consumer’s first impression.
Paper Procurement
↓
Printing
↓
Lamination/Foil Stamping/UV Coating
↓
Die Cutting&Creasing
↓
Automatic Gluing
↓
Assembly&Forming
↓
Quality Inspection
Process | Features | Cost | Best Application |

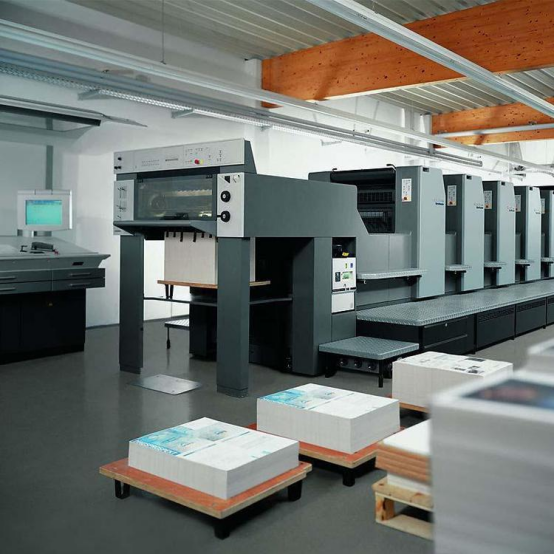

Offset Printing | Stable Color Quality | Medium | Standard Paper Boxes |
UV Printing | High Gloss Finish | Higher | Premium Packaging |
Foil Stamping | Metallic Luxury Effect | High | Luxury Branding |
Screen Printing | Strong Texture | Medium-High | Specialty Effects |
Digital Printing | Flexible Production | Medium | Small Batch Orders |
Slow production speed
Inconsistent accuracy
Uneven adhesive application

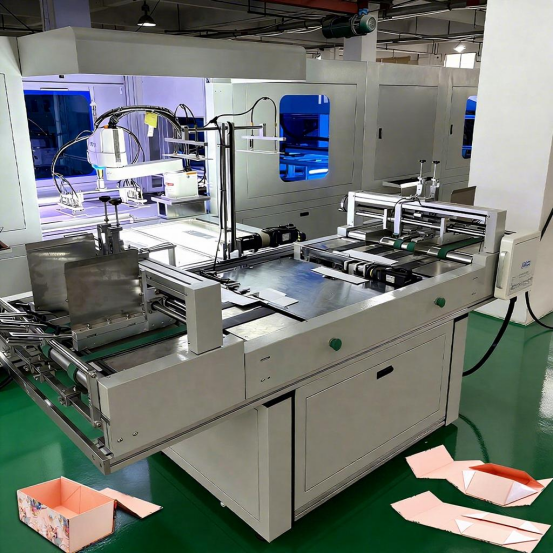

Automated folding
Automated gluing
Automated defect inspection

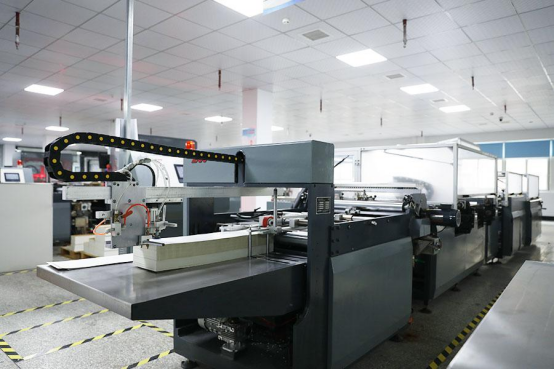

Item | Manual Gluing | Automatic Folder-Gluers |
Hourly Output | 800-1,500 pcs | 8,000-25,000 pcs |
Labor Requirement | High | Low |
Error Rate | Higher | Extremely Low |
Long-Term Cost | High | Lower Over Time |
Quality Consistency | Unstable | Stable |

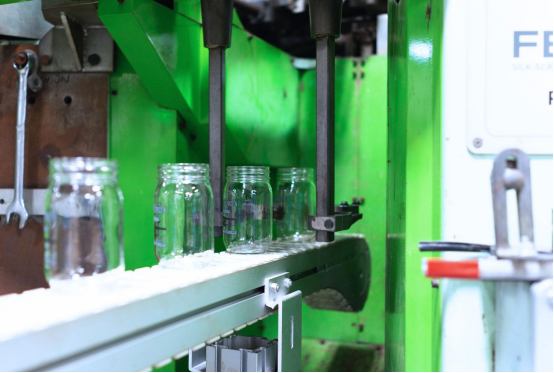

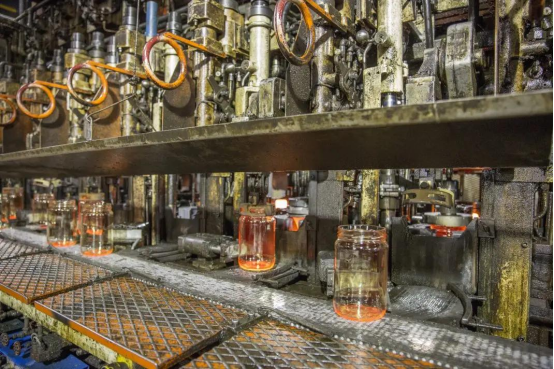

Glass jars are especially popular in premium concentrate and collectible smoking accessory markets.
Their production process resembles liquid-fire artistry.
Silica Sand Mixing
↓
High-Temperature Melting(~1500°C)
↓
Mold Forming
↓
Annealing&Cooling
↓
Coating/Screen Printing
↓
Seal Testing
Labor-intensive
Moderate consistency
Higher energy consumption

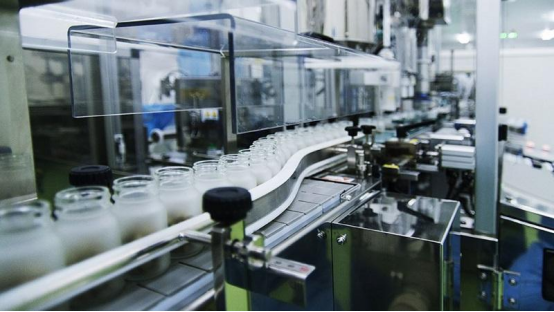

Automatic gob feeding
Automatic blowing
Automatic annealing
Automated quality inspection
Item | Traditional Glass Process | Automated IS System |
Daily Output | 5,000-10,000 pcs | 100,000-400,000 pcs |
Thickness Uniformity | Moderate | Excellent |
Breakage Rate | 5%-8% | 1%-2% |
Energy Consumption | High | Lower |
Labor Cost | High | Lower |
Seal Stability | Medium | High |
Child-resistant packaging has rapidly expanded due to strict North American and European regulations.
Common CRC structures include:
Push&Turn
Squeeze&Pull
Dual-lock systems
Hidden-button mechanisms
Challenge | Description |
Precision Mold Design | Extremely Tight Tolerances |
Compliance Testing | Must Pass Child Safety Standards |
Open/Close Durability | Requires Repeated Cycle Testing |
Material Strength | Prevents Structural Failure |
Process Upgrade | Quality Impact | Cost Impact |
Multi-Layer Co-Extrusion | Improves Barrier Protection | Higher Material Cost |
Digital Printing | Greater Flexibility | More Cost-Effective for Small Runs |
Automated Inspection | Reduces Defects | Higher Equipment Investment |
Automated Assembly | Improves Efficiency | Lower Long-Term Cost |
UV/Foil Finishing | Enhances Premium Appearance | Higher Unit Price |
Industrial camera systems automatically detect:
Color variation
Missing print areas
Seal defects
Barcode errors
Inspection speed dramatically exceeds manual inspection.
Western markets increasingly demand:
Recyclable materials
Water-based inks
Solvent-free lamination
PCR recycled plastics
Next-generation packaging is beginning to include:
NFC chips
Anti-counterfeit QR codes
Temperature-sensitive labels
AR interactive packaging
Packaging is gradually evolving into a“communicating shell.”
Packaging Type | Best Market Position | Main Advantages |
Mylar Bags | Fast-Moving Consumer Market | Low Cost,High Efficiency |
Paper Boxes | Brand Presentation | Premium Appearance |
Glass Jars | Luxury&Collectible Market | Strong Premium Value |
Metal Tins | Trendy Collaborations | Durable&Retro Style |
CRC Packaging | Regulated Western Markets | Safety Compliance |
Modern smoking accessories packaging has evolved into a hybrid battlefield of:
Material science+automation engineering+brand aesthetics+regulatory compliance.
Traditional manufacturing resembles a craftsman’s workshop.
Advanced production facilities operate more like futuristic industrial ecosystems:
Laser systems scanning micron-level defects
Robotic arms folding paper boxes
AI vision systems identifying invisible color deviations
Multi-layer barrier films acting like invisible armor
Behind every successful package lies not only graphic design,but an entire industrial civilization running at full speed.
